User Countries | IsraelSaudi Arabia |
| Primary Function | Tactical fighter.
|
| Contractor | McDonnell Douglas Corp.
|
| Power Plant | Two Pratt & Whitney F100-PW-100 turbofan engines with afterburners.
|
| Thrust | (C/D models) 25,000 pounds each engine ( 11,250 kilograms).
|

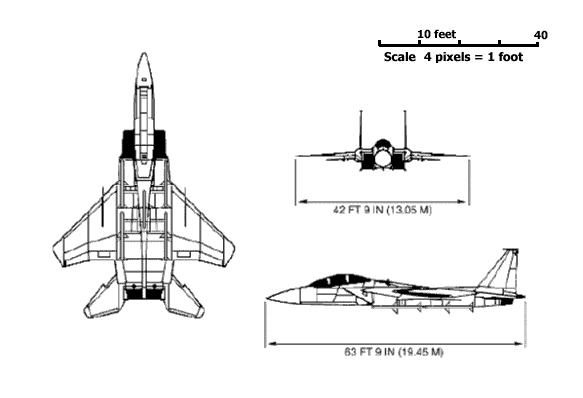

| Length | 63 feet, 9 inches (19.43 meters).
|
| Height | 18 feet, 8 inches (5.69 meters).
|
| Wingspan | 42 feet, 10 inches (13.06 meters)
|
| Speed | 1,875 mph (Mach 2.5-plus at sea level).
|
| Ceiling | 65,000 feet (19,697 meters).
|
| Maximum Takeoff Weight | (C/D models) 68,000 pounds (30,600 kilograms).
|
| Range | 3,450 miles (3,000 nautical miles) ferry range with conformal fuel tanks and three external fuel tanks.
|
|
Armament | 1 - M-61A1 20mm multibarrel internal gun, 940 rounds of ammunition
4 - AIM-9L/M Sidewinder and
4 - AIM-7F/M Sparrow missiles, or
combination of AIM-9L/M, AIM-7-F/M and AIM-120 missiles.
F-15C Weapon Loads
| AIM | AIM | AIM | AGM | 20 |
| 7 | 9 | 120 | 88 | MM |
| 4 | 4 | | | 900 |
| 4 | 2 | 2 | | 900 |
| 2 | 2 | 4 | | 900 |
| 4 | 4 | | 4 | 900 |
| 4 | 4 | 4 | 900 |
| | 8 | | 900 |
F-15E Weapon Loads
12 CBU-52 (6 with wing tanks)
12 CBU-59 (6 with wing tanks)
12 CBU-71 (6 with wing tanks)
12 CBU-87 (6 with wing tanks)
12 CBU-89 (6 with wing tanks)
20 MK-20 (6 with wing tanks)
| AGM | AGM | CBU | CBU | CBU | GBU | GBU | GBU | GBU | | AIM | AIM | 20 |
| 65 | 130 | 87 | 89 | 97 | 10 | 12 | 28 | 15 | JDAM | 9 | 120 | MM |
| 4 | | | | | | | | | | | 4 | 500 |
| 1 | | | | | | | | | | 4 | 500 |
| | 8 | | | | | | | | | 4 | 500 |
| | | 8 | | | | | | | | 4 | 500 |
| | | | 8 | | | | | | | 4 | 500 |
| | | | | 4 | | | | | | 4 | 500 |
| | | | | | 8 | | | | | 4 | 500 |
| | | | | | | 2 | | | | 4 | 500 |
| | | | | | | | 1 | | | 4 | 500 |
| | | | | | | | | 4 | | 4 | 500 |
| | | | | | | | | | 4 | 4 | 500 |
| | | | | | | | | | 2 | 6 | 500 |
|
| Systems |
AN/APG-63 X-band pulsed-Doppler radar [Hughes]
AN/APG-70 X-band pulsed-Doppler radar [Hughes]
[ on F-15E, F-15C/D, F-15A/B MSIP]
AN/APX-76 IFF interrogator [Hazeltine]
AN/ALQ-135(V) internal countermeasures system
AN/ALQ-128 radar warning [Magnavox] suite
AN/ALR-56 radar warning receiver (RWR) [Loral]
AN/ALE-45 chaff/flare dispensers [Tracor]
AN/AVQ-26 Pave Tack
AN/AXQ-14 Data Link System
LANTIRN
|
| Crew | F-15A/C: one. F-15B/D: two.
|
Unit cost $FY98
[Total Program] | $43 million.
|
| Date Deployed | July 1972
|
Production
[for USAF] |
360 F-15A/B
408 F-15C
61 F-15D
203 F-15E
|
| Total Inventory |
275 F-15A/B
410 F-15C/D
203 F-15E
Approximately 100 F-15s are in storage @ AMARC
|
PMAI
Primary Mission Aircraft Inventory |
45 F-15A/B Air National Guard Air Defense Force
45 F-15A/B Air National Guard
126 F-15C/D Air Combat Command
90 F-15C/D Pacific Air Forces
36 F-15C/D US Air Forces Europe
342 F-15A/C TOTAL
66 F-15E Air Combat Command
18 F-15E Pacific Air Forces
48 F-15E US Air Forces Europe
132 F-15E TOTAL
Only combat-coded aircraft and not development/ test, attrition reserve, depot maintenance, or training aircraft.
|
